extract3
algorithm
- extracts values of a variable along an isosurface of an other one (e. g. the flame front)
- computes coordinates of vertices of the isosurface using the matlab tool isosurface
- computes values of variable on the vertices by interpolating between given values on coordinates
- plots extracted values of variable and histogram of values using the toolbox tool colorplot3
- plots pdf of extracted values
syntax
[variso,face,vert,fprob]=extract3(X,Y,Z,fdefine,level,variable,s,fig)
example for input
[varisostrn,face,vert,fprob]=extract3(X,Y,Z,CO2,0.03,strn,'abs','yes')
input arguments
|
X,Y,Z |
vectors defining the rectangular domain |
|
fdefine |
variable defining the flame front |
|
level |
value of fdefine defining the flame front |
|
variable |
variable to be extracted along flamefront |
|
s |
switch: level, iso1, iso2 is rel. or abs. |
|
fig |
switch: yes or no for figures or not |
output arguments
|
vert |
vertices of isosurface |
|
f |
faces of isosurface |
|
variso |
extracted values of variable on the isosurface |
|

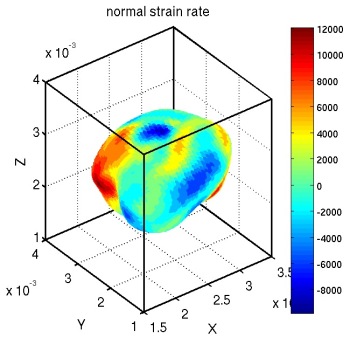

plot |
isosurface with values |
